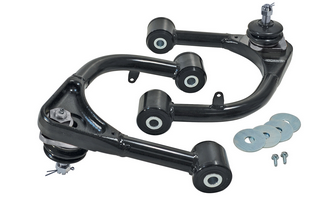

SPC Performance Adjustable Upper Control Arms Toyota Land Cruiser 200 Series / Lexus LX570

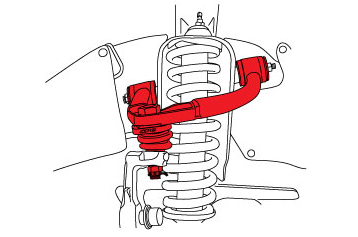

Improve droop travel, drivability and tire wear as well as adjusting tire position in your wheel well with SPC’s adjustable front upper control arms. Featuring a new maintenance free ball joint and xAxis™ bushings, this arm is designed to correct alignment angles while maintaining factory ride quality. SPC's integrated tubular and cast steel designs provide the strength and durability needed for the most demanding environments. These remove and replace arms are sold in pairs.

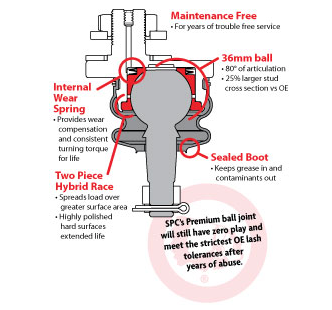

Get more droop travel: SPC’s arm has improved clearance to get around the spring bucket. With 80° of articulation in the new maintenance free ball joint and free pivoting bushings, SPC's arm gives you maximum droop travel.

Get your drivability and tracking back: When you lift your truck you affect caster and camber. SPC’s arms have +1° of caster built into them. Using its patented ball joint design the arm will get you 0° to +4° of caster and ±2° of camber, so you can put your alignment angles back to specification.

Get your tire where you want it in the wheel well: Use adjustment in the control arm and on the OE lower cams to maximize alignment angles and move oversized tires forward in the wheel well to minimize or avoid fender trimming.

Do you need heavy duty rear lower control arms? Check out SPC p/n 25965, which are more than 2x stronger than the OE arms.

Front Adjustment range: Camber ±2.0°
Caster -1.0° to +4.0°
Installation time: .8 hr/side
Required: 1 per axle

Fits the following;

2008-2011 Lexus LX570 Base
2013-2021 Lexus LX570 Base
2008-2011 Toyota Land Cruiser Base
2013-2021 Toyota Land Cruiser Base
2020-2021 Toyota Land Cruiser Heritage Edition
