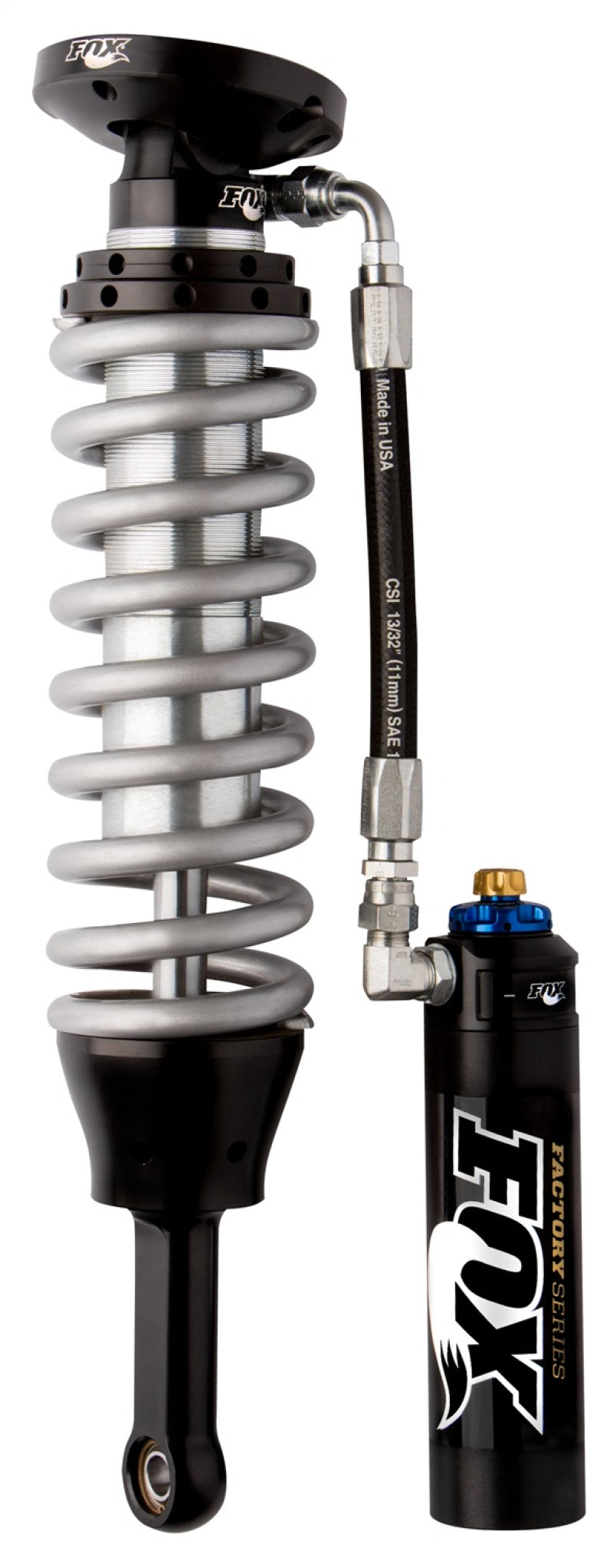

Fox Factory Race Series 2.5 Coilover Reservoir Shock Adjustable 2005+ Toyota Hilux 4WD / 0-2in. Lift (Pair)

Fox Factory Race Series 2.5 Coilover Reservoir Shock Adjustable 2005+ Toyota Hilux 4WD / 0-2in. Lift (Pair)

SKU:883-06-092

Regular price $2,399.95 USD
Regular price Sale price $2,399.95 USD
Sale Sold out
Shipping calculated at checkout.

Before any of our shocks reach production, they've had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. We push the boundaries to give you that same precise control and race-proven performance you can feel. Our bolt-on Factory Race Series Coil-over Reservoir shocks provide improved damping in any terrain.

Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Experience for yourself the incredible performance and precise control that Factory Series Coil-over Reservoir shocks deliver.

FEATURES Performance Tuned For Vehicle Specific Application; Durable Zinc Plated Seamless Alloy Body; External Reservoir System Dissipates Heat Fast; Black Anodized CNC Machined Aluminum Components
SERIES Factory Race
TRAVEL 4.55
FRONT LIFT HEIGHT 0-2
BODY 2.5” smooth bore zinc plated seamless steel body
BODY PLATING Zinc-plated and double-clear coated for long lasting finish
RESERVOIR 2.5" Smooth bore and honed seamless alloy reservoir
COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
SHAFT 7/8" hard chrome plated steel shafts
PISTON 6061-T6 hard-anodized, high flow aluminum piston
VALVING Application specific valving to maximize performance
SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
BEARINGS PTFE-lined, heat-treated, alloy steel spherical
EXTENDED LENGTH 21.46
COMPRESSED LENGTH 16.91
TOP MOUNT OEM
BOTTOM MOUNT Eyelet
FITMENT NOTES Front Lift : 0-2 inches


2005 Toyota Fortuner 4WD Front 0-2
2006 Toyota Fortuner 4WD Front 0-2
2007 Toyota Fortuner 4WD Front 0-2
2008 Toyota Fortuner 4WD Front 0-2
2009 Toyota Fortuner 4WD Front 0-2
2010 Toyota Fortuner 4WD Front 0-2
2011 Toyota Fortuner 4WD Front 0-2
2012 Toyota Fortuner 4WD Front 0-2
2013 Toyota Fortuner 4WD Front 0-2
2014 Toyota Fortuner 4WD Front 0-2
2005 Toyota FortunerTRDSportivo RWD Front 0-2
2006 Toyota FortunerTRDSportivo RWD Front 0-2
2007 Toyota FortunerTRDSportivo RWD Front 0-2
2008 Toyota FortunerTRDSportivo RWD Front 0-2
2009 Toyota FortunerTRDSportivo RWD Front 0-2
2010 Toyota FortunerTRDSportivo RWD Front 0-2
2011 Toyota FortunerTRDSportivo RWD Front 0-2
2012 Toyota FortunerTRDSportivo RWD Front 0-2
2013 Toyota FortunerTRDSportivo RWD Front 0-2
2014 Toyota FortunerTRDSportivo RWD Front 0-2
2005 Toyota Hilux 4WD Front 0-2
2006 Toyota Hilux 4WD Front 0-2
2007 Toyota Hilux 4WD Front 0-2
2008 Toyota Hilux 4WD Front 0-2
2009 Toyota Hilux 4WD Front 0-2
2010 Toyota Hilux 4WD Front 0-2
2011 Toyota Hilux 4WD Front 0-2
2012 Toyota Hilux 4WD Front 0-2
2013 Toyota Hilux 4WD Front 0-2
2014 Toyota Hilux 4WD Front 0-2
2015 Toyota Hilux 4WD Front 0-2
2016 Toyota Hilux 4WD Front 0-2
2005 Toyota HiluxPre Runner - TRD RWD Front 0-2
2006 Toyota HiluxPre Runner - TRD RWD Front 0-2
2007 Toyota HiluxPre Runner - TRD RWD Front 0-2
2008 Toyota HiluxPre Runner - TRD RWD Front 0-2
2009 Toyota HiluxPre Runner - TRD RWD Front 0-2
2010 Toyota HiluxPre Runner - TRD RWD Front 0-2
2011 Toyota HiluxPre Runner - TRD RWD Front 0-2
2012 Toyota HiluxPre Runner - TRD RWD Front 0-2
2013 Toyota HiluxPre Runner - TRD RWD Front 0-2
2014 Toyota HiluxPre Runner - TRD RWD Front 0-2
2015 Toyota HiluxPre Runner - TRD RWD Front 0-2
2016 Toyota HiluxPre Runner - TRD RWD Front 0-2
