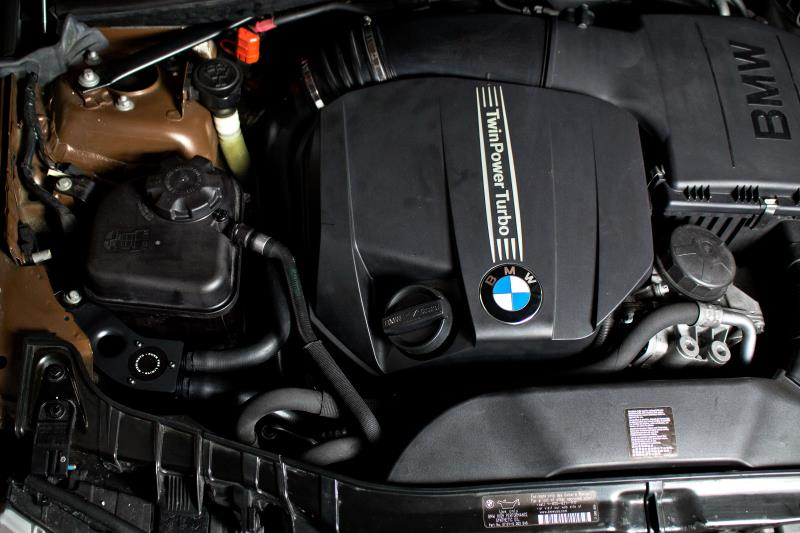

Single 2-Port Compact Baffled Oil Catch Can separates oil particles using 50-micron bronze filter

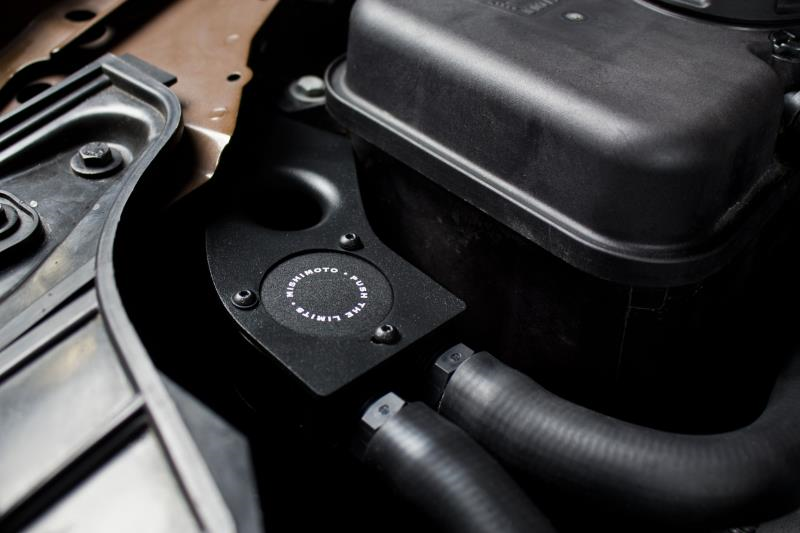

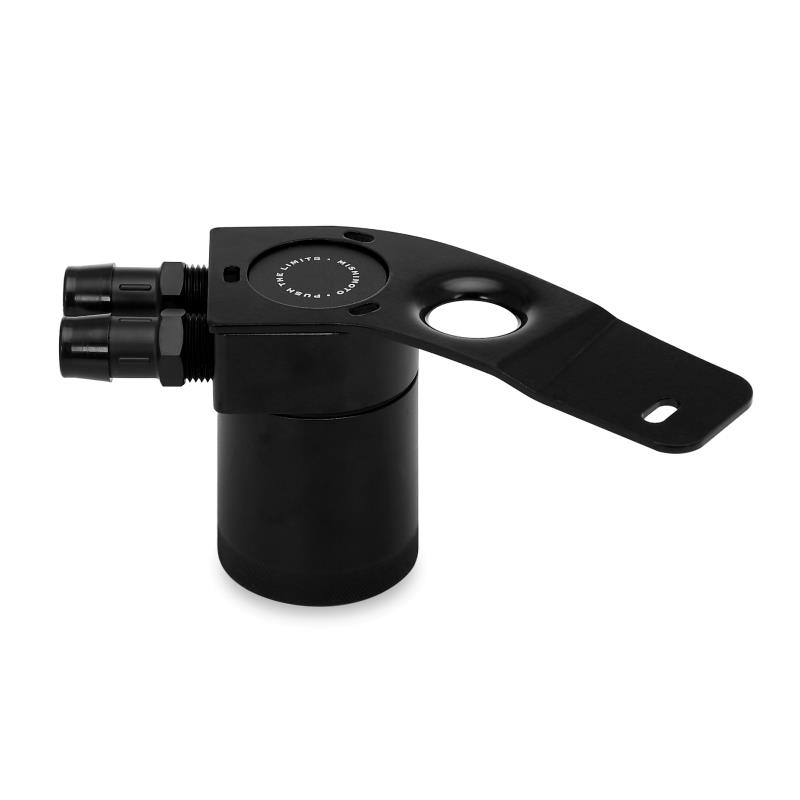

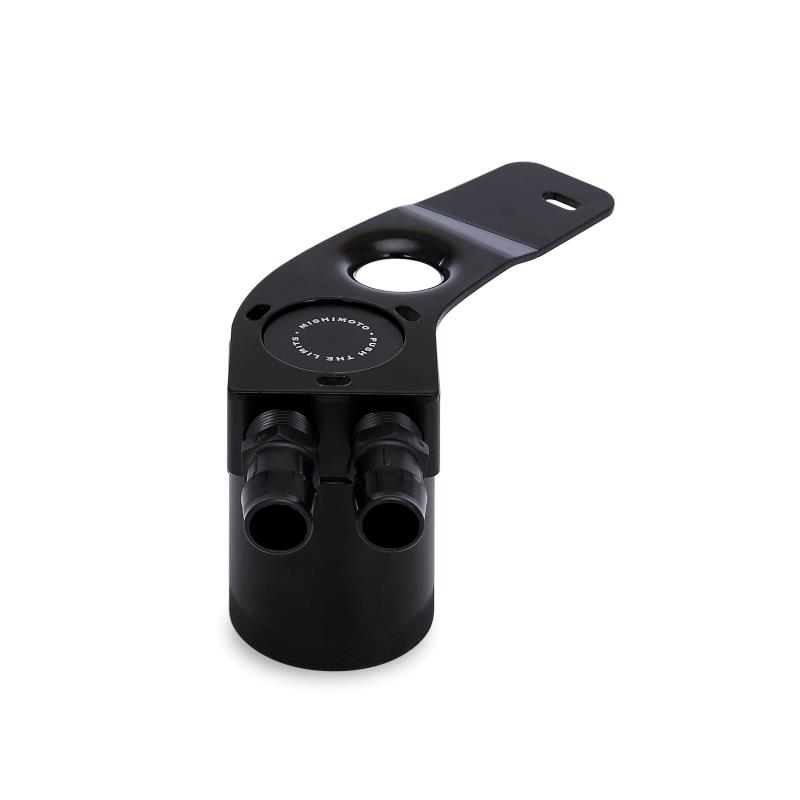

Application-specific bracket mounts the can in a serviceable location
Billet 6061 aluminum sealed can
Defends intercooler, intake system, and VANOS system from oil blow-by
Helps maintain proper octane levels to reduce potential detonation

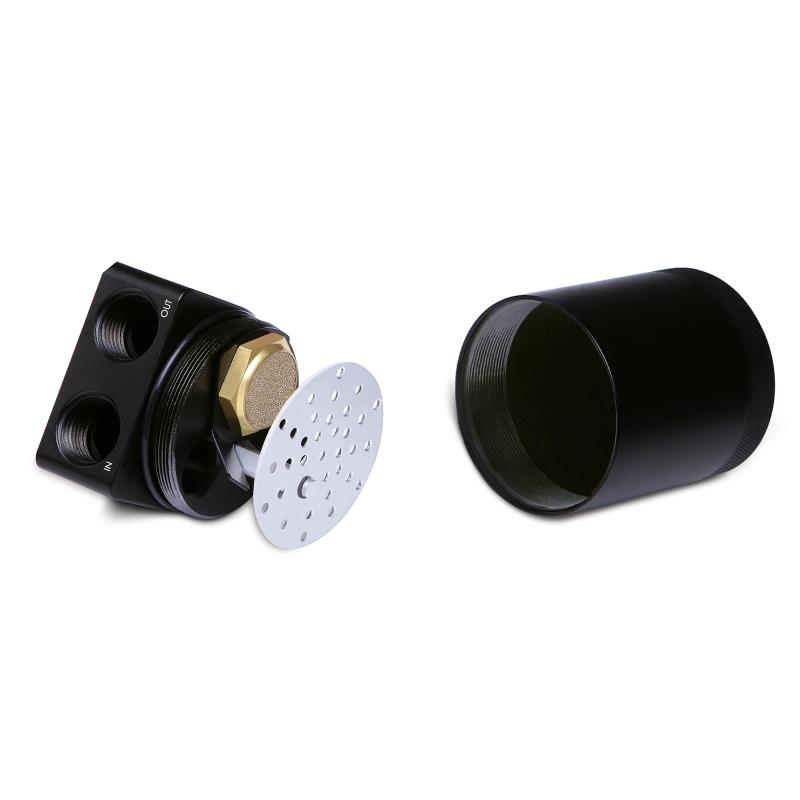

Internal air diverter increases air turbulence to improve oil separation
Filters and can are fully serviceable
Mishimoto Lifetime Warranty
Overall Height 3.8"
Overall Diameter 2.5"
Drain Plug Thread Size 3/8" NPT
Capacity 2 fl oz

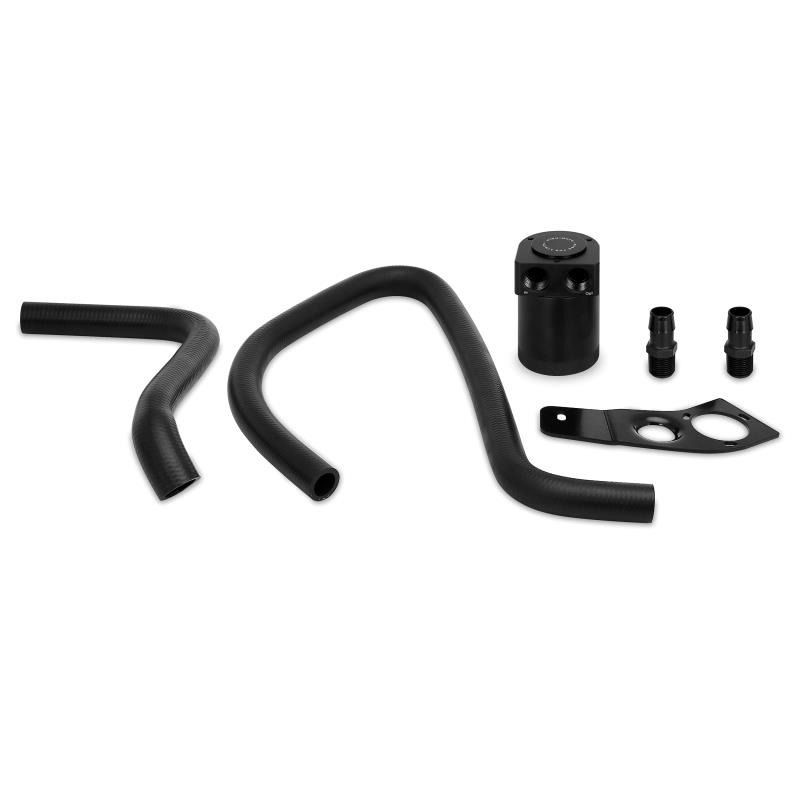

Purchase Includes (1) Application-Specific Mounting Bracket (1) Anodized 6061 Aluminum Catch Can, Black (2) Direct Fit Hoses, Black (2) Plastic Barbed Fittings (1) Air Diverter (1) Internal Baffle & Rod (1) 3/8" NPT Plug (1) Large O-Ring Mounting Hardware Mishimoto Lifetime Warranty
Fits 2011-2013 BMW 135i Coupe 2011-2013 BMW 135i Convertible 2011 BMW 335i/xi Sedan 2011-2013 BMW 335i/xi Coupe 2011-2013 BMW 335i/xi Convertible
Engine Codes N55
Chassis Codes E82 E88 E90 E92 E93
Material 6061 Aluminum
Install Torque Specs 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

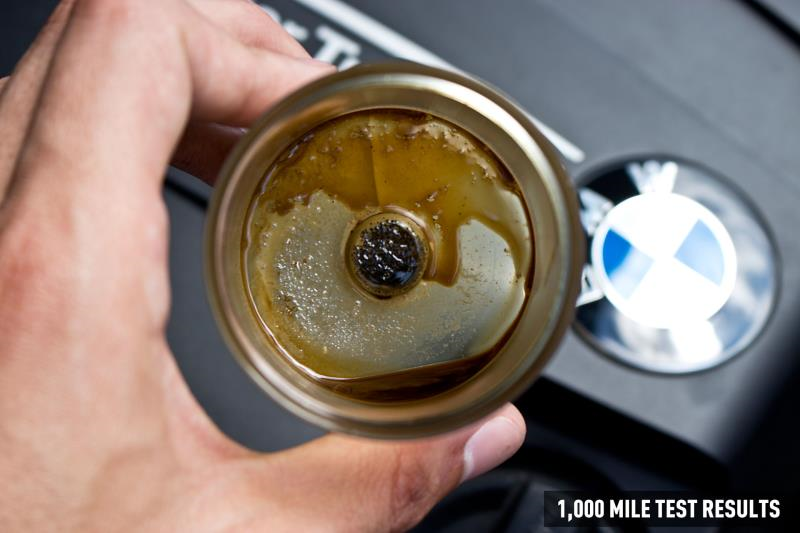

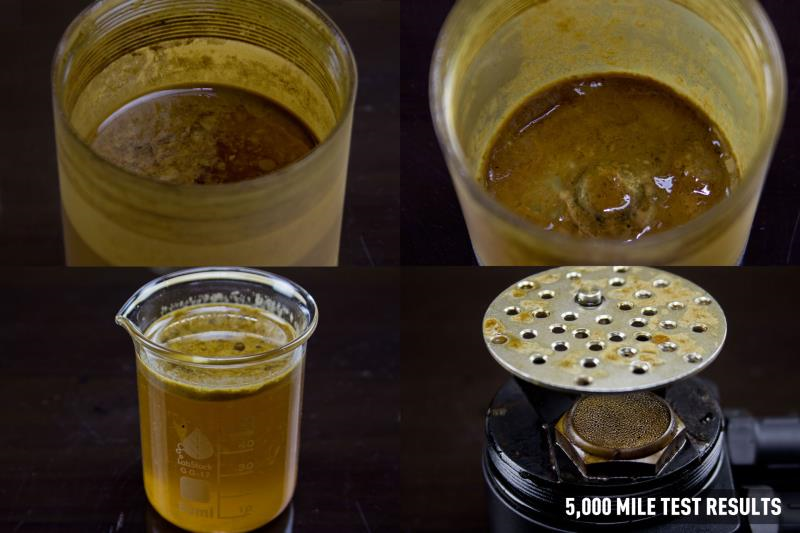

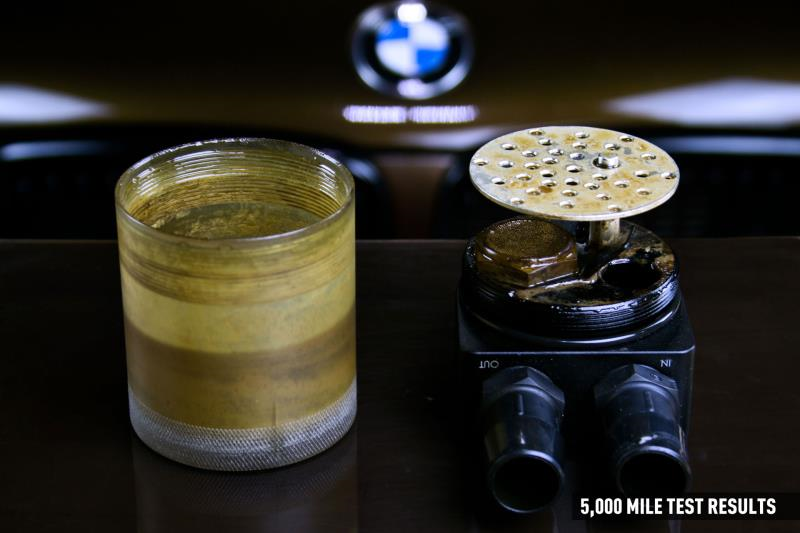

Note After installation, Mishimoto recommends checking the contents of the baffled catch cans every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle
