Mishimoto Baffled Oil Catch Can System 2016+ Chevrolet Camaro 2.0T

Mishimoto Baffled Oil Catch Can System 2016+ Chevrolet Camaro 2.0T

MMBCC-CAM4-16SBE

$482.95 USD
$643.83 USD $482.95 USD
Sale Sold out
Shipping calculated at checkout.
  • Direct fit for the 2016+ Chevrolet Camaro 2.0T
  • Installs in under 1 hour
  • Patent Pending PCV adapter allows for proper connection into engine’s PCV system

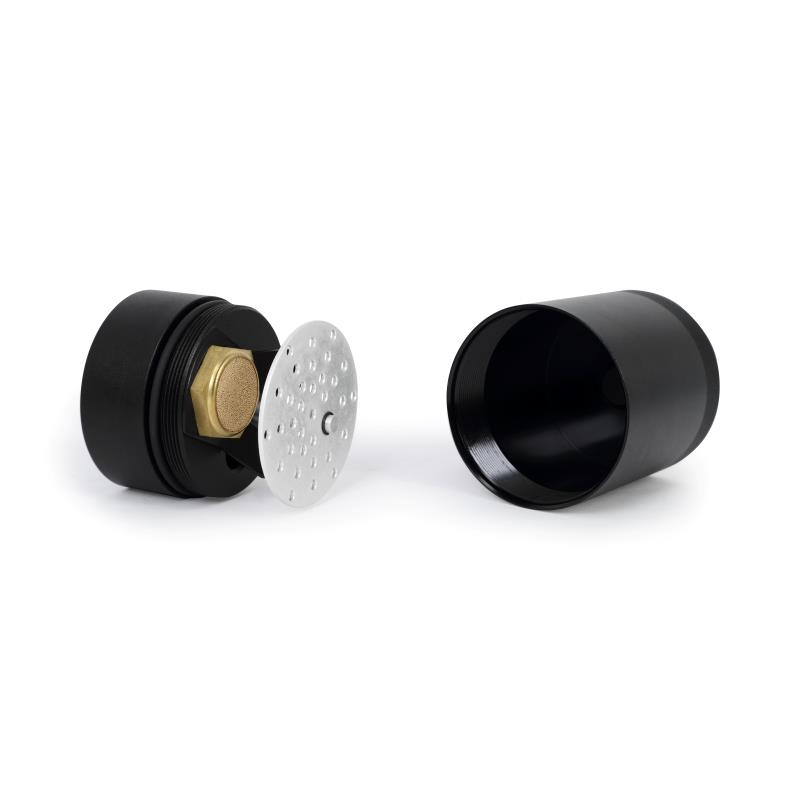

  • Cans mount in line with the PCV system and CCV system to separate oil from air using 50 micron bronze filters
  • Helps maintain proper octane levels to reduce potential detonation
  • Reduces carbon build-up on the intake valves
  • Internal air diverter increases air turbulence to improve oil separation

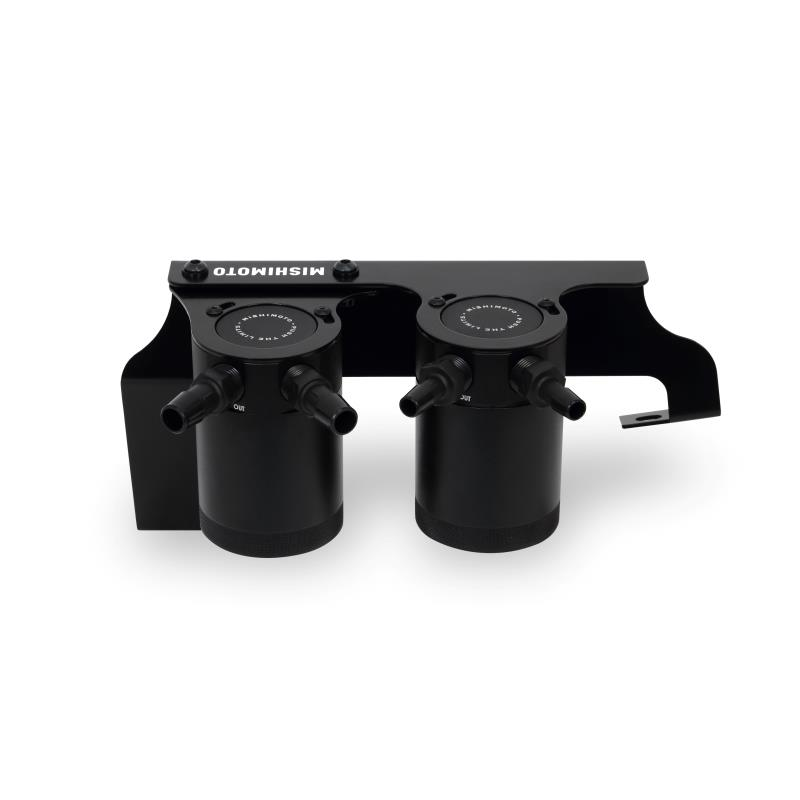

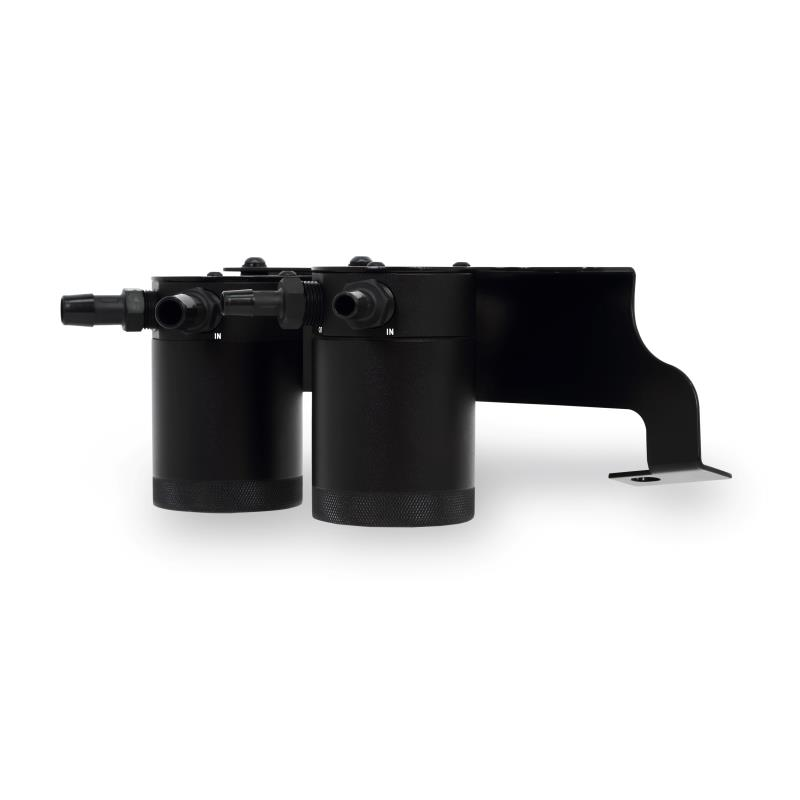

  • Application-specific brackets mount the cans in a serviceable location near the main fuse box
  • Billet 6061 aluminum sealed cans
  • Filters and cans are fully serviceable
  • Catch cans have a 2 oz. capacity for longer servicing intervals
  • Application-specific black pre-molded silicone hoses

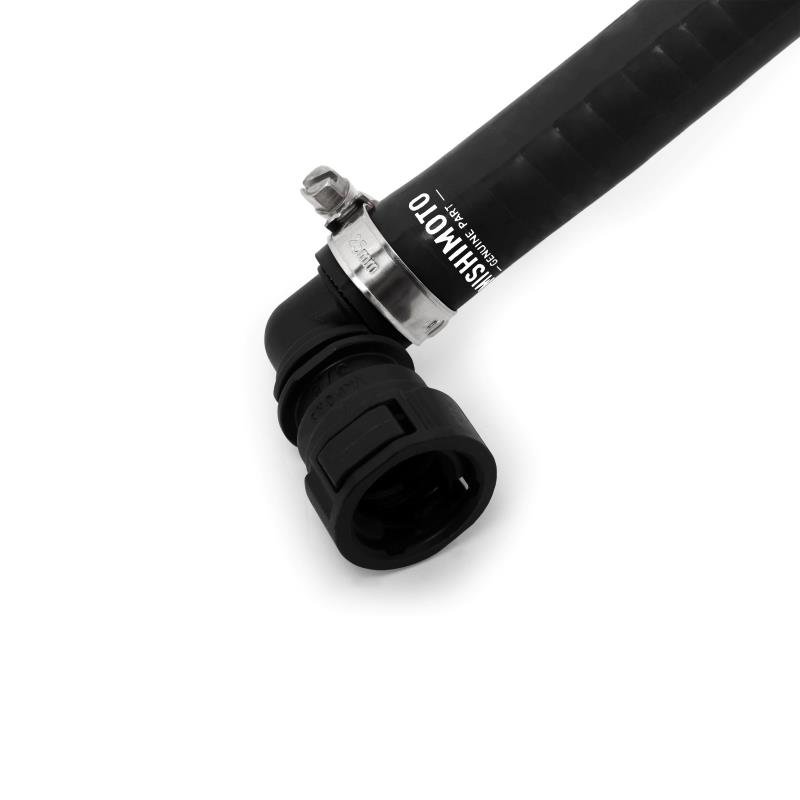

  • Hoses include OEM style quick-disconnect fittings for easy installation and special tools to remove original fittings without damage
  • Mishimoto Lifetime Warranty

  • Overall Height 3.8"

    Overall Diameter 2.5"

    Inlet 3/8" NPT

    Outlet 3/8" NPT

    Drain Plug Thread Size 3/8" NPT

    Capacity 2 fl oz

    Assembled Weight 0.9 lbs

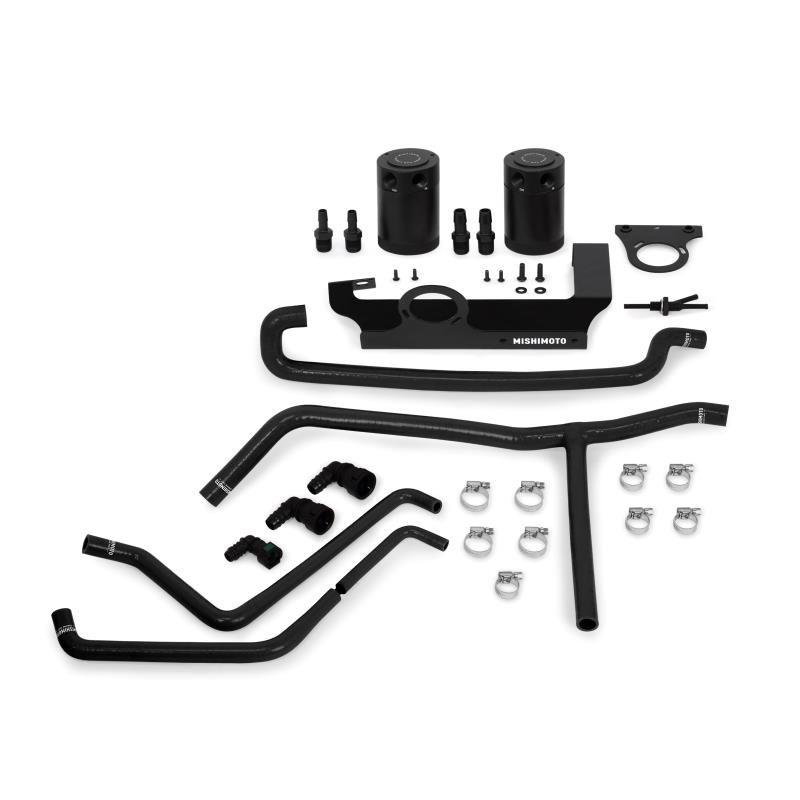

    Purchase Includes (2) Application-specific mounting bracket
    (2) Black, Anodized 6061 Aluminum Catch Can
    (5) Direct-fit Silicone Hoses
    (11) High-quality worm gear clamps
    (2) Metal Tool for removing stock fittings
    (4) Plastic Barbed Fittings
    (1) Plastic Barbed Straight Fitting

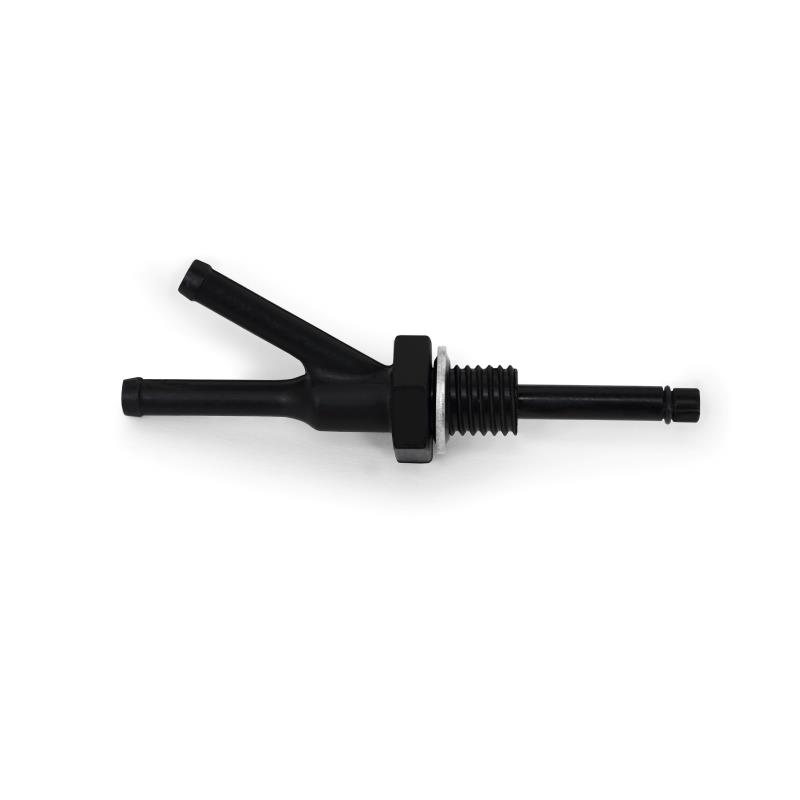

    (1) Patent Pending PCV adapter (supplied with 2 extra O-rings)
    (2) Air Diverter
    (2) Internal Baffle & Rod
    (2) 3/8" NPT Plug
    (2) Large O-rings
    Mounting Hardware
    Mishimoto Lifetime Warranty

    Fits 2016+ Chevrolet Camaro 2.0T

    Engine Codes LTG

    Chassis Codes Alpha

    Material 6061 Aluminum

    Install Torque Specs 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

    Note After installation, Mishimoto recommends checking the contents of the baffled catch can every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.

    Baffled True
