Recaro Slider Track Kit

For Sliding Seats, RECARO Sliders get the job done. Making an investment in RECARO Seats is the right move, so complement that decision with RECARO Sliders. Guaranteed to fit and not warp, break, or malfunction. Why trust anyone else when you have the best?

The Inside Bar vs. Outside bar designation refers to the adjustment mechanism to slide the seat back and forth; Inside Bar means the adjustment is underneath the seat (what I would recommend) - Outside bar means the adjustment would be on the side of the seat. Double-locking slider kit with an inside release lever/actuator without tabs.

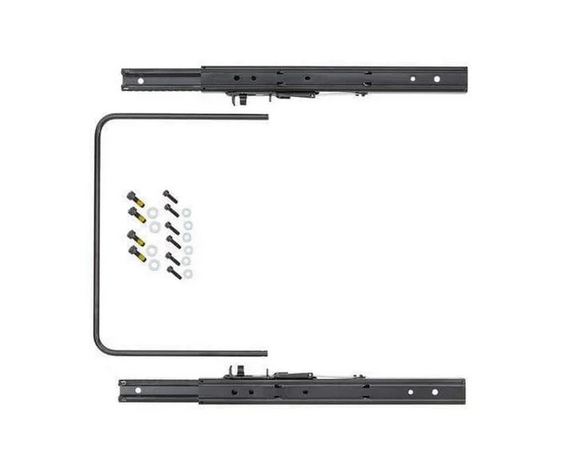

Recaro Slider Track kit includes the following:

• Right hand & left-hand tracks with 220 mm of fore/aft travel

• 6 M6X20 MM bolts to secure the upper track to the seat frame

• 4 M8X20 internal hex head (Allen) bolts to secure the lower track to an adapter/base frame/floor structure

• 6 washers for the M6 bolts

• 4 washers for the M8 bolts

• Inside or outside release lever (depending on configuration)


If you want fore-aft adjustment on your Recaro seat, you will require a set of sliders. The Recaro sliders fit between the vehicle adapter and the seat brackets. There are two types depending on how your floor adapters work - without tabs and with tabs.

Without Tabs - offers the lowest possible seating position - the total height of the sliders is 22mm (7/8"); the sliders are sandwiched between the floor mount and Seat Mount (or seat, depending on configuration); the bolts install to the floor mount perpendicular to the ground; works with flat Macht Schnell or other bar-type floor mounts only.

With Tabs - the sliders have tabs on each end with three height positions; the positions allow height and rake adjustments but means it's taller than the version without tabs - total height with the tabs is 58mm (2.25"); the tabs mean the mounting bolts install parallel to the ground; some floor mounts require the tab style (Planted or other plate-type mounts).

Recaro sliders are steel constructed - pulling the handle moves teeth on two tracks which is more secure and stable than a single track. This set of sliders has a bar on the inside of the track, which is the most commonly used for BMW & Tesla fitments. Sold per seat.
