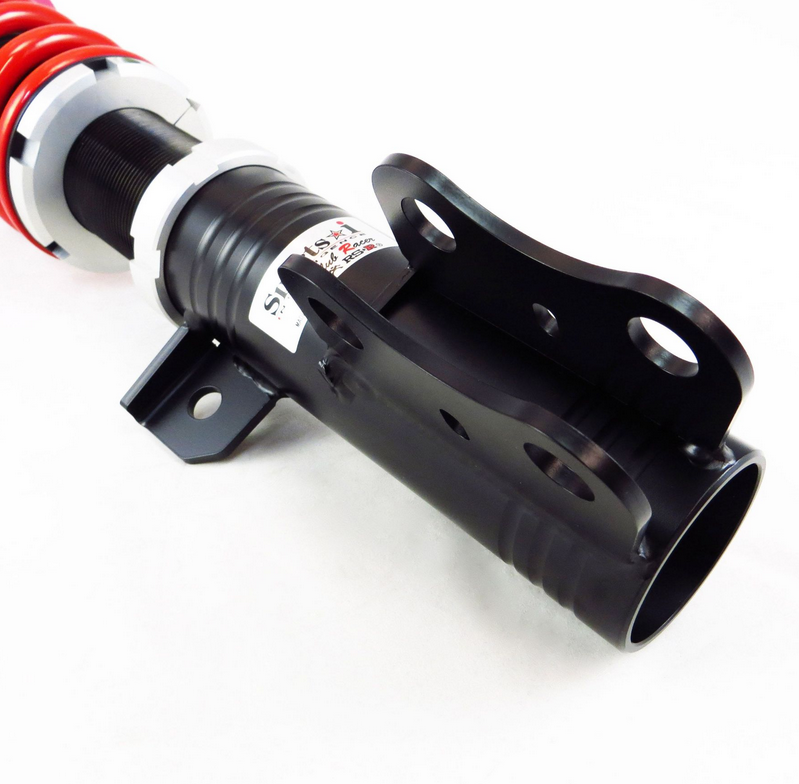

Fine tuned for competition, our RS-R Club Racer Series offers unquestionable performance with its track dedicated setup.
Compatibility: 2023+ Toyota GR Corolla Chassis code: GZEA14L
Preset Approximate Height

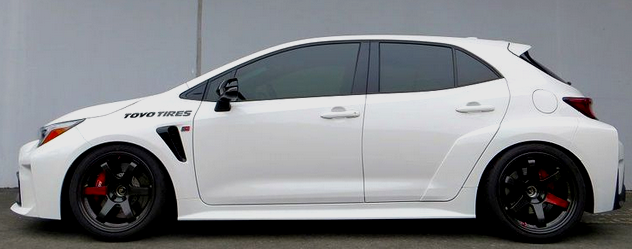

Front: -30mm to -35mm (-1.2in to -1.4in) Rear: -35mm to -40mm (-1.4in to -1.6in)
Maximum Adjustment Range
Front: 0mm to -90mm (0in to -3.6in) Rear: -15mm to -65mm (-0.6in to -2.6in)
Recommended Adjustment Range
Front: -10mm to -55mm (-0.4in to -2.2in) Rear: -15mm to -65mm (-0.6in to -2.6in)
Spring Rate
Front: 10.0kg/mm Rear: 13.0kg/mm
Additional Information

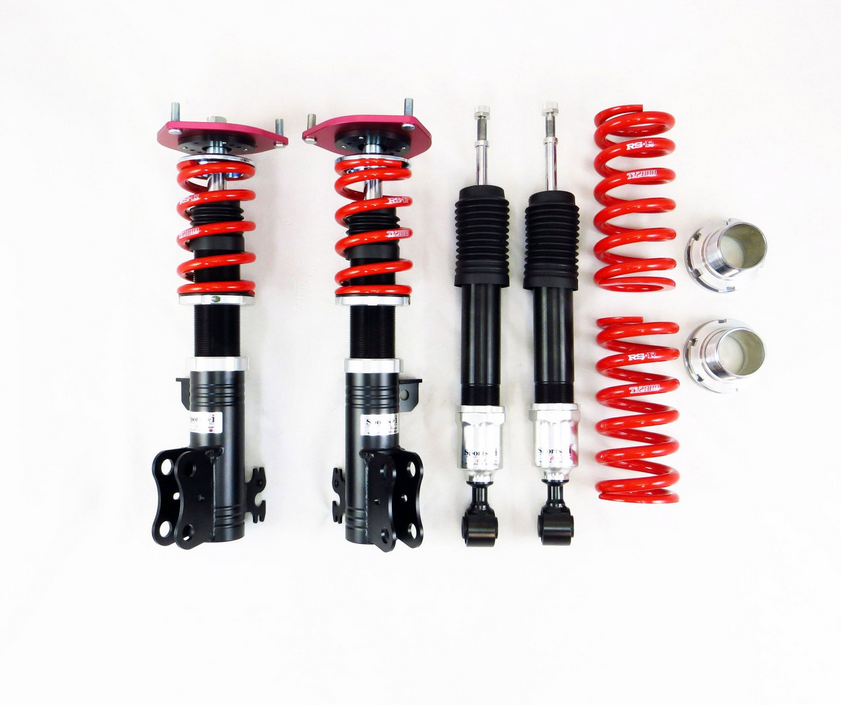

Dampers are 36 way adjustable in the front and the rearWarranty: 1 Year / 12,000 miles from the day of purchase Included but not pictured: hex and allen wrench, poly seat for rear spring, hex nut for rear shock, water-proof rubber cover, bush collar for rear, spring tube
