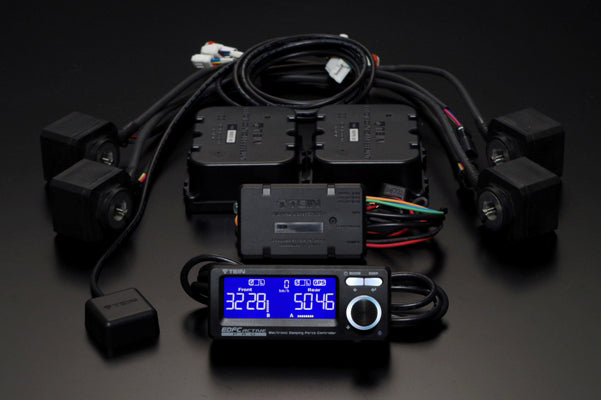

Tein EDFC Active Pro Controller Kit

EDFC ACTIVE PRO is a high-spec version of EDFC ACTIVE, which enables automatic adjustment of damping force according to the changes in longitudinal G-force and vehicle speed, and comes with new and upgraded functions.

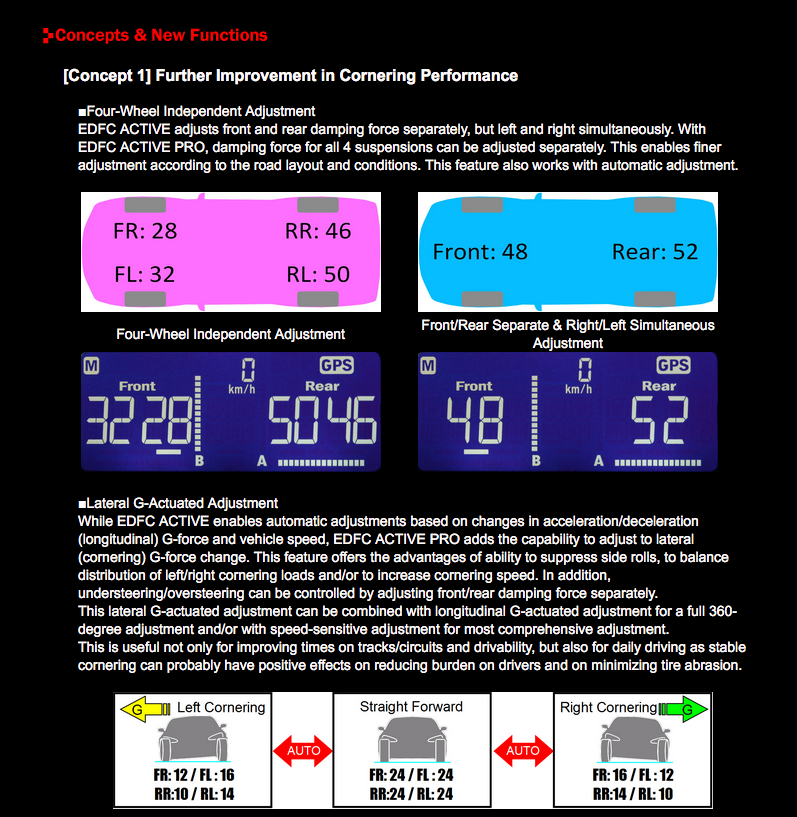

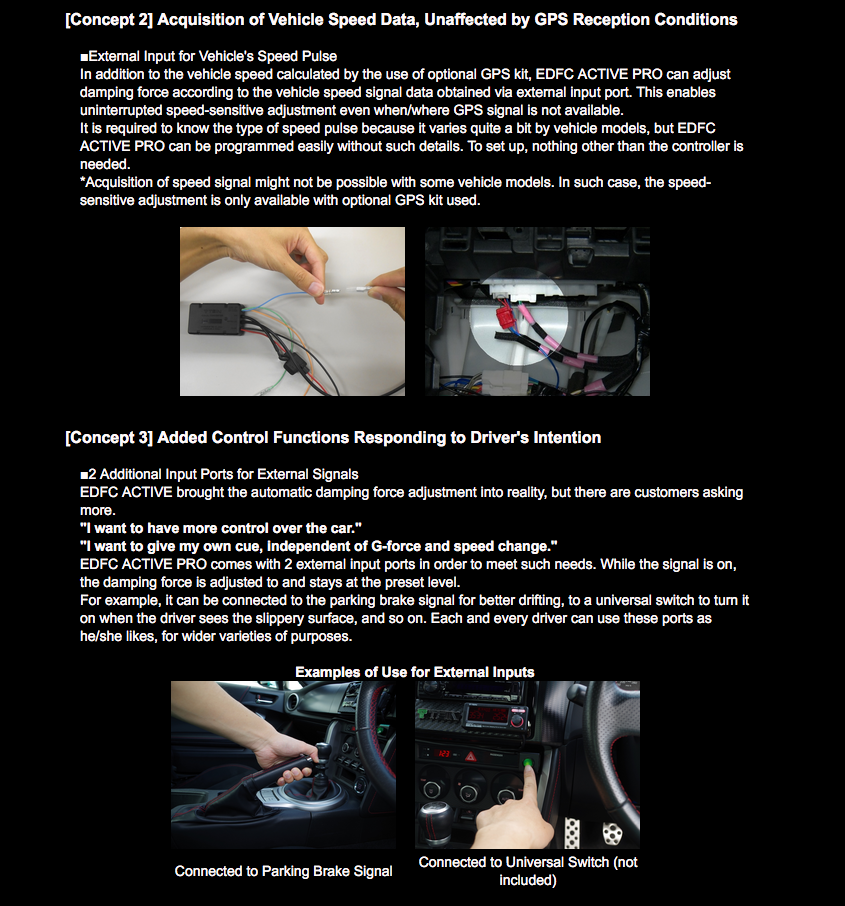

Newly-added features, such as individual adjustment of 4 shock absorbers, lateral (cornering) G-actuated automatic adjustment, vehicle speed pulse input and 2 additional input ports to communicate with drivers, are sure to bring out the full potential of each shock absorber as well as the vehicle itself. Please enjoy another dimension of shock absorber performance that EDFC ACTIVE PRO brings. (Patent Pending)

* This product does not adjust vehicle ride height.

●Frequency of Return-to-Zero Operation

In order to maintain the correct damping force level, the system is programmed to perform zero-return on start-up, where all motors are rotated to the hardest (level 0) position and then returned to the previously set position. We added the option to choose the frequency, for people who do not really like the sound of motors during such operation. The user can choose from 3 options; on every start-up, once in every 10 start-ups or none at all. *It is recommended to perform zero-return periodically to maintain the correct damping force setting. *Zero-return is performed each and every time the controller itself is manually turned on.

●Starting Point for G-Actuated Adjustment

For people who do not want G-actuated adjustment to work and/or do not like the motor sounds while driving at low speed, we added the function to set the minimum speed at which G-actuated adjustment to start working. Starting point can be set between 0 to 50km/h (or 0 to 50MPH) and G-actuated adjustment would not work when the vehicle speed is below such set value.

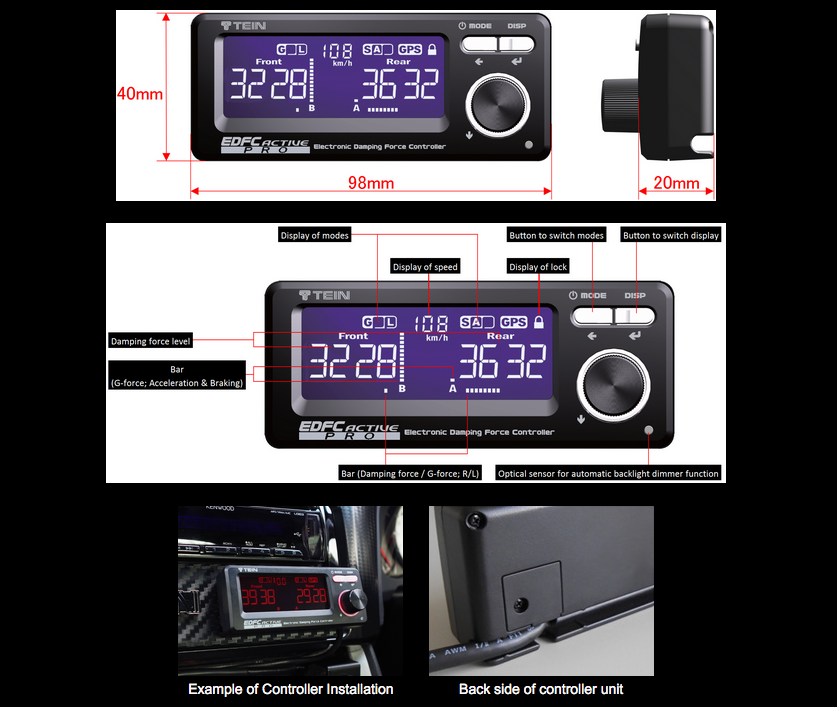

●One-Dial Operation

Simple one-dial operation is adopted with emphasis on convenient handling. This user-intuitive interface requires only a few basic operations to remember; turn the dial to select/adjust, push the dial to confirm and push 2 buttons above the dial to switch between the different functions.

●Triaxial Acceleration Sensor

Controller has a built-in triaxial G-sensor, which offers the ability to install controller unit at any desired angle & direction.

●Display & Button Automatic Dimmer Function

Brightness of the display and the button illumination can be adjusted automatically according to the brightness of the surroundings detected by the built-in optical sensor. This eliminates the need for connecting cable to vehicle's illumination power supply. This function can be turned off.

●Display & Button Dimmer Function (level 0 to 3)

Brightness baseline of the display and the buttons for automatic dimmer function can be set by the user between level 0 (off), 1 (dark) and 3 (bright).

●Switchable Display View Angle (2 patterns)

Viewing angle of display can be adjusted in 2 different angles to offer better visibility even when the controller unit is installed at an angle.

●Buzzer Volume Adjustment (level 0 to 3)

Volume of "button sound/buzzer" and "auto-adjustment buzzer" can be set separately between level 0 (mute), 1 (low) and 3 (high).

●Lock Function

Operation of both buttons and dial can be locked to prevent operation mistakes.

●Self-Diagnostic Function

The self-diagnostic function checks the status of driver unit and/or wireless communication. If it detects any errors in driver unit (disconnection / short circuit) and/or problem in wireless connection, the result will be shown on display.

●New Material for Outer Housing

EDFC ACTIVE PRO adopted the new material for the outer housing of the driver unit, for improved heat resistance.

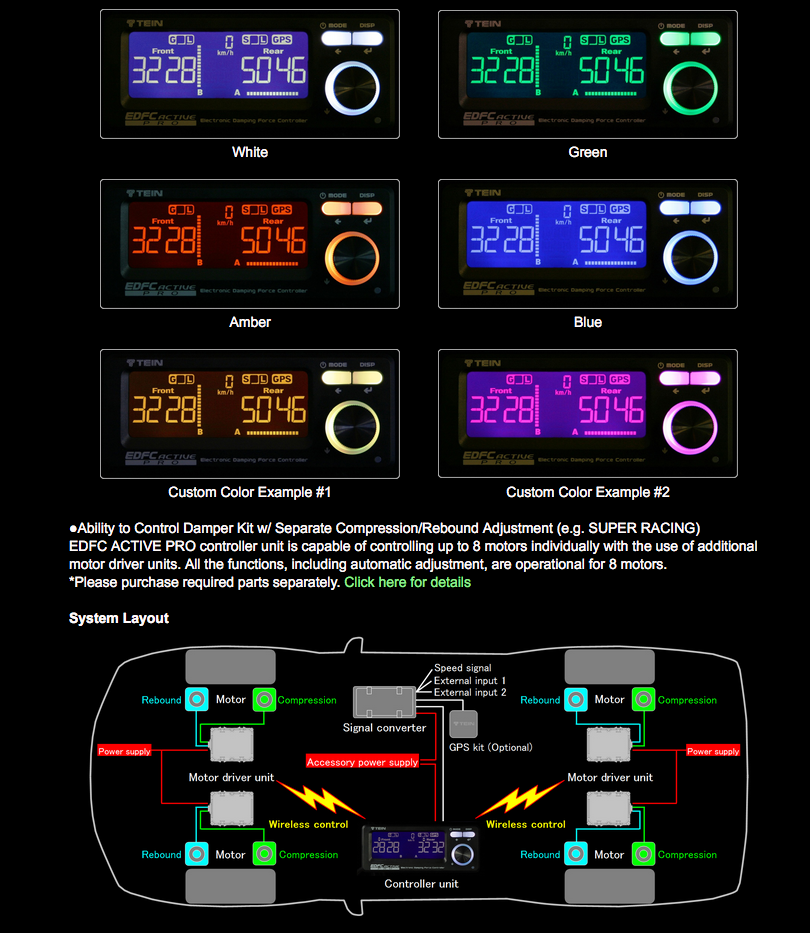

●Ability to Adjust Color of Display and Button Illumination (Full 262K Colors)

In addition to 4 default colors (white, green, amber & blue), fine-tunable custom colors are available.
