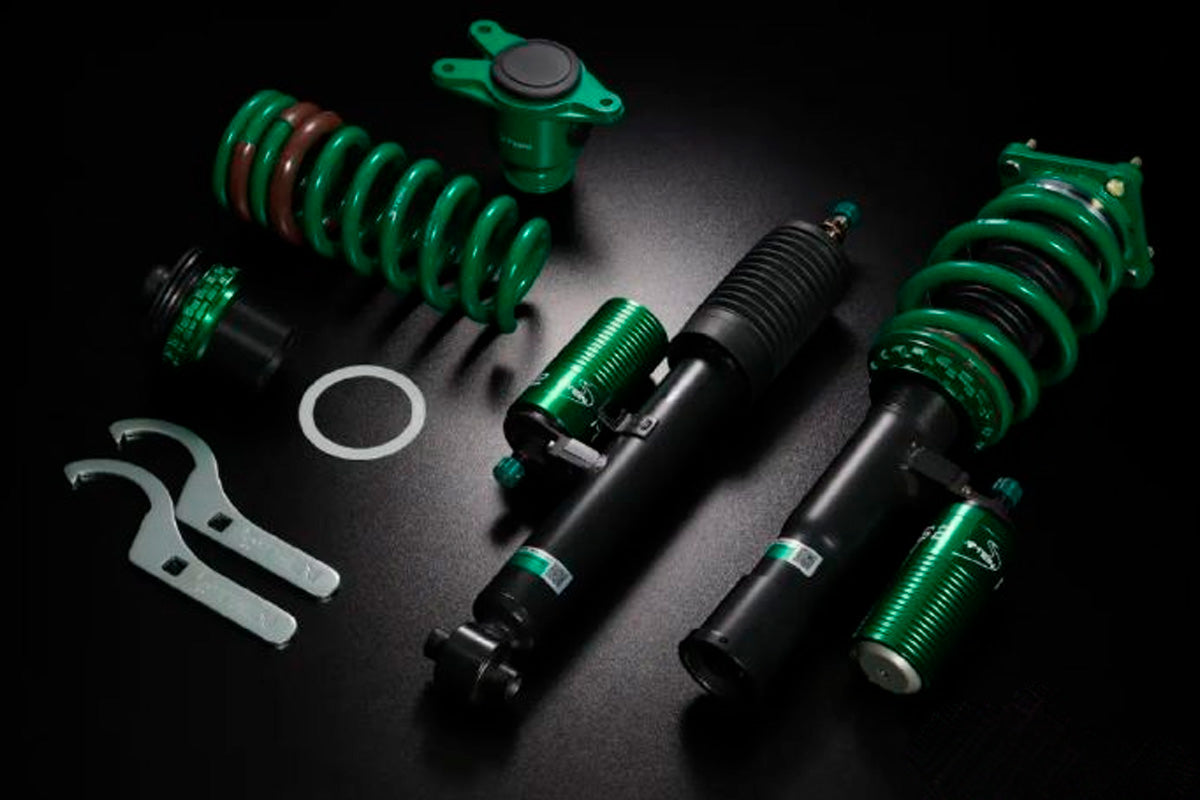

Tein FS2 Coilovers 2018-2023 Tesla Model 3 4WD / 2020-2023 Model Y (Long Range)

Retail Price: $2,600.00 Our Price: $2,470
Vendor: Tein SKU: VSGP4-N1AA3

Description

External Reservoir-

Use of reservoir tank allows for larger oil capacity, sufficient stroke and improved thermal dissipation, enabling the generation of stable linear damping force.

2-Way Damping Force Adjustable-

2-way damping force adjustment feature for FS2 combines 16-level comp./rebound simultaneous adjustment and 16-level comp. adjustment alone, to offer broad adjustable range for greater setting capabilities to meet wide varieties of driving situations/conditions.

Hydraulic Bump Stopper (H.B.S)-

In regular shock absorbers, bump rubber is vital to avoid damage from bottoming out. Unfortunately it causes instability, because when a large impact compresses it, energy thus amassed is released upwards.

FS2 however uses the Hydraulic Bump Stopper to convert the impact to thermal energy and absorb it. This strongly reduces the shock, and there's no repulsion force.

Camber Adjustable Lower Bracket-

Lower brackets on strut type suspensions come with camber angle adjustment feature. Camber angle can be adjusted by rotating the eccentric washer 180°. This feature can enable camber angle adjustment, even if it can not be adjusted with the upper mounts.

*Except some models (e.g. strut with insert type brackets)

Camber-Adjustable Insert-Type Strut with Off-Center Sleeve-

For some vehicle models with insert-type struts, eccentric sleeves are used to enable camber angle adjustments. By rotating the sleeves, camber angle can be adjusted to either negative or positive, from the standard position.

Mounts Included-

An easy-to-install mount, exclusively designed for each vehicle model, is included in the product kit.
For some vehicle models which do not have mount plates, original mounts are used.

Thread-Type Ride Height Adjustment-

The ride height can be adjusted by moving the lower spring seat up or down. Characteristic of this system is its simple structure and ease of use.

Twin-Tube System-

Compared to the regular mono-tube system, twin-tube attains longer strokes with a smaller repulsive force, resulting in high ride comfort.

Overhaul/Revalving Available-

Like most TEIN shock absorbers, FS2 can be overhauled to restore its original performance.
During overhaul, we also offer revalving service: you can have the damping force setup updated to suit your preferences.

Compatible with EDFC Series (Optional)-

The EDFC Series offer easy damping force adjustment from the driver's seat.*
* Some vehicle models are not compatible

Optimal Dust Boot-

Thanks to its smooth compression and high durability, the dust boot guards the piston rod from damage, and keeps foreign material out of the shock absorber.
(Some vehicles use their OE dust boots)

No-Sag Spring-

Cold formed with SAE9254 steel (minimum tensile strength 200 kgf/mm2), our springs are outstandingly sag-proof and boast extremely stable quality.

Superior rust protection is ensured with a highly durable powder coating that does not peel or flake. Our high-quality springs can be used without worries, in any conditions.

High-Performance Damper Oil-

Since TEIN's damper oil maintains a stable viscosity in a broad temperature range, it sustains smooth strokes and reliable damping force in a variety of circumstances.

Due to excellent anti-foaming properties, it's resistant to cavitation (bubble forming). Since it's strong against heat too, it's suitable for fierce sport driving as well.

Furthermore, the damper oil keeps up its superior performance long-term, because it's resistant to deterioration over time.

Rust-Proofing-

Our unique ZTP Coating surface treatment is abrasion resistant against gravel/debris and further enhancesrust/corrosion resistance. With zero claims for stuck parts due to rust in 500,000 shock absorbers, TEIN shock absorbers are amazingly rustproof. We're confident of customer satisfaction even in coastal areas or regions with heavy snowfall. Also, a bright TEIN-green powder paint provides extremely strong and durable barrier, yet this painting technique cuts pollution to a bare minimum with no harmful organic solvents used.

Superior durability and corrosion resistance are achieved by TEIN's patented 2-Layer, 1-Bake powder coating method, which uses 2 layers of anti-rust paint on a blasted surface.
(Japanese patent number 4347712)
