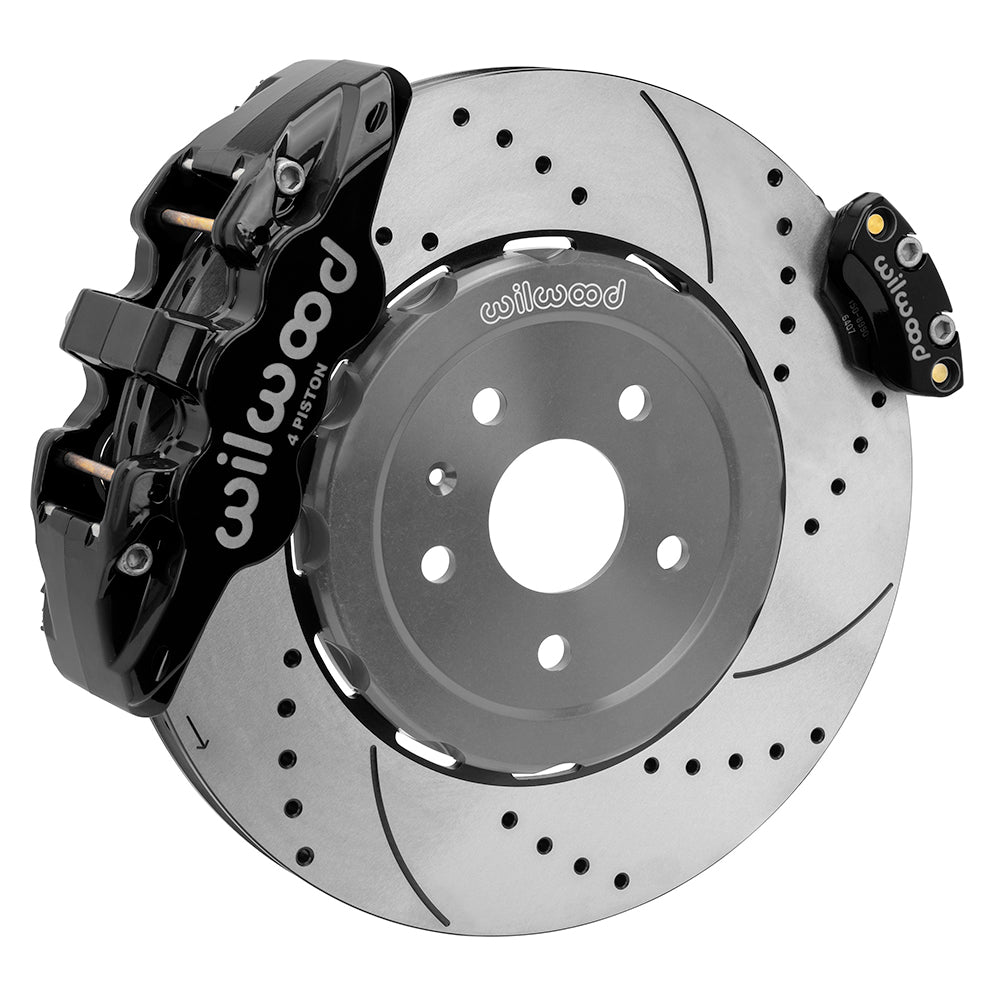

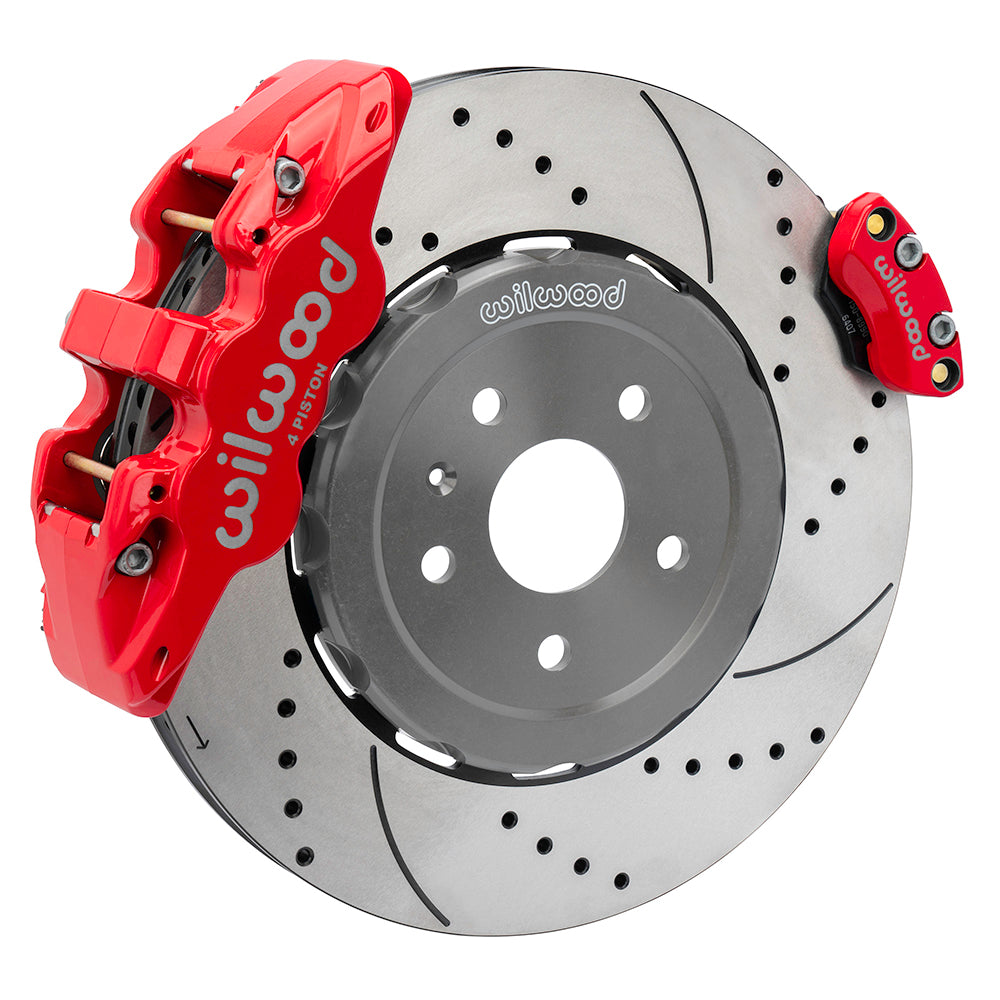

Wilwood Aero4 Big Brake Kits Rear 2020-2023 Chevy Corvette C8 (SRP Drilled & Slotted 15.00" Rotor)

Wilwood’s Speed Xtreme SX6R six piston front and Aerolite AERO4 four piston rear calipers are combined with 15.00” dynamic-mount, Lug-Drive floating rotors to create the ultimate C8 Corvette big brake package. These rotors are more than 2” larger in diameter than the base model’s brakes, 1.7” larger than the factory Z51, and 0.5” larger than the Z06. The kits deliver better pedal feel, increased brake torque, and greater thermal capacity without distortion.

Kit Features:

Complete bolt-on installation that works with the factory master cylinder and on-board computers without modification

Increased thermal capacity for heavy use without fading or distortion

AERO4 Big Brake Rear Dynamic Electronic Parking Brake Kit:

AERO4 Big Brake Dynamic Rear Electronic Parking Brake Kits provide the ultimate Big Brake solution for Super Car rear axles an integrated electronic parking brake. Aero4 four piston calipers, 15” Dynamic Lug Mount rotors, and high performance BP compound pads, provide optimized and balanced braking to compliment front big brake upgrades. The unique Electronic Parking Brake caliper provides a static high torque static holding power for parking without mechanical cabling. Supplied with control unit and harness assembly, it simplifies installation and use. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Rotors: Spec 37 GT or SRP Drilled

Dynamic-mount Lug-Drive floating rotor system isolates thermally induced stresses between the hat and rotor

Race-proven Lug-Drive system eliminates need for safety wire, thread lockers, or torque wrenches

Big 15.00” Spec37 72 curved vane rotors have more thermal capacity and better cooling for increased performance and longer life; choose GT slotted or SRP drilled & slotted

Brake Pads: BP-10

BP-10 street performance pads provide smooth, and consistent response with long wear over a broad range of temperatures (other compounds available)

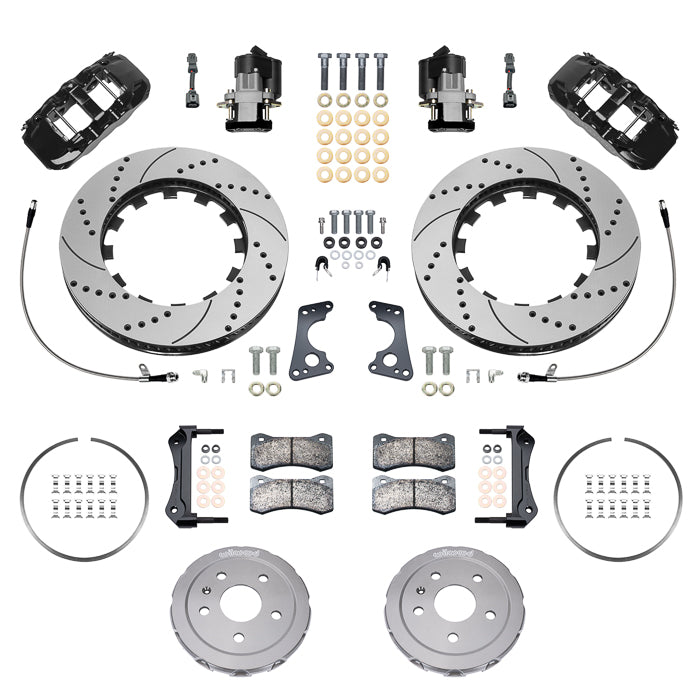

Installation Parts:

Caliper brackets, stainless steel braided Flexlines, and premium-grade installation hardware included

This Brake Kit may fit 19-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

EPB:

Electric Park Brake included in rear kit.  Integrates with factory system.
