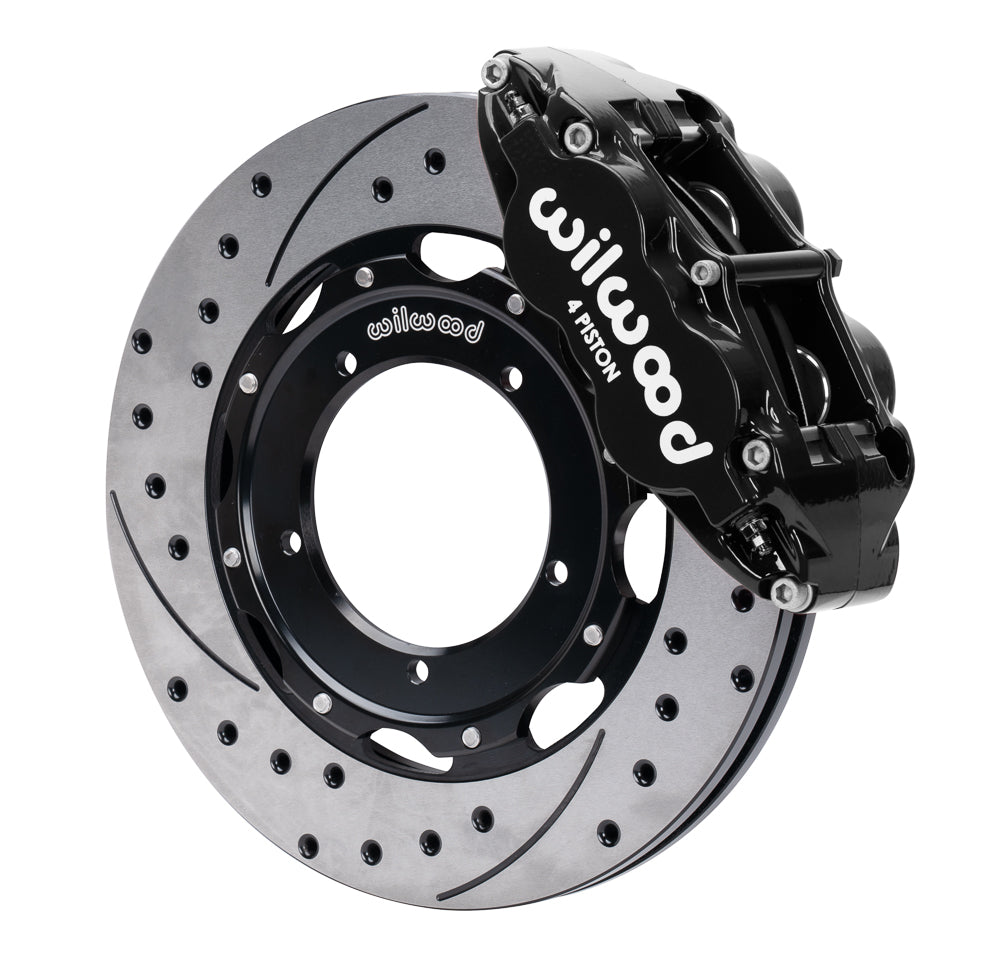

Wilwood Superlite Front Big Brake Kits 1969-1974 Porsche 911 3.00 MT (SRP Drilled/Slotted 12.19" Rotor)

Wilwood engineered these big brake kits around motorsports- proven Superlite calipers for the classic 1969-89 Porsche 911. Larger 310mm (12.19”) iron alloy rotors with forged aluminum mounting hats and Wilwood brackets produce greater brake torque and less fade, while weighing substantially less than OE.  These rigid, forged billet aluminum four piston calipers upgradethe stock 911 to a spec similar to the 1974 RS or 930 turbo, with the added advantage of decades of material, design, and
manufacturing advancements. Kits are available for both 3.0” (76,2mm) and 3.5” (88,9mm) mounting tabs.

Kit Features:

Superlite front calipers have been proven in countless road race, circle track, and off-road competition classes, evolved over decades and refined through millions of laps

Direct bolt-on upgrade for 1969-89 Porsche 911 with no permanent modifications

Designed to work with OEM master cylinders and rear brakes to maintain proper front to rear brake bias

Calipers: Superlite FNSL4R

Stress-flow forged aluminum calipers with stainless steel pistons for strength and durability

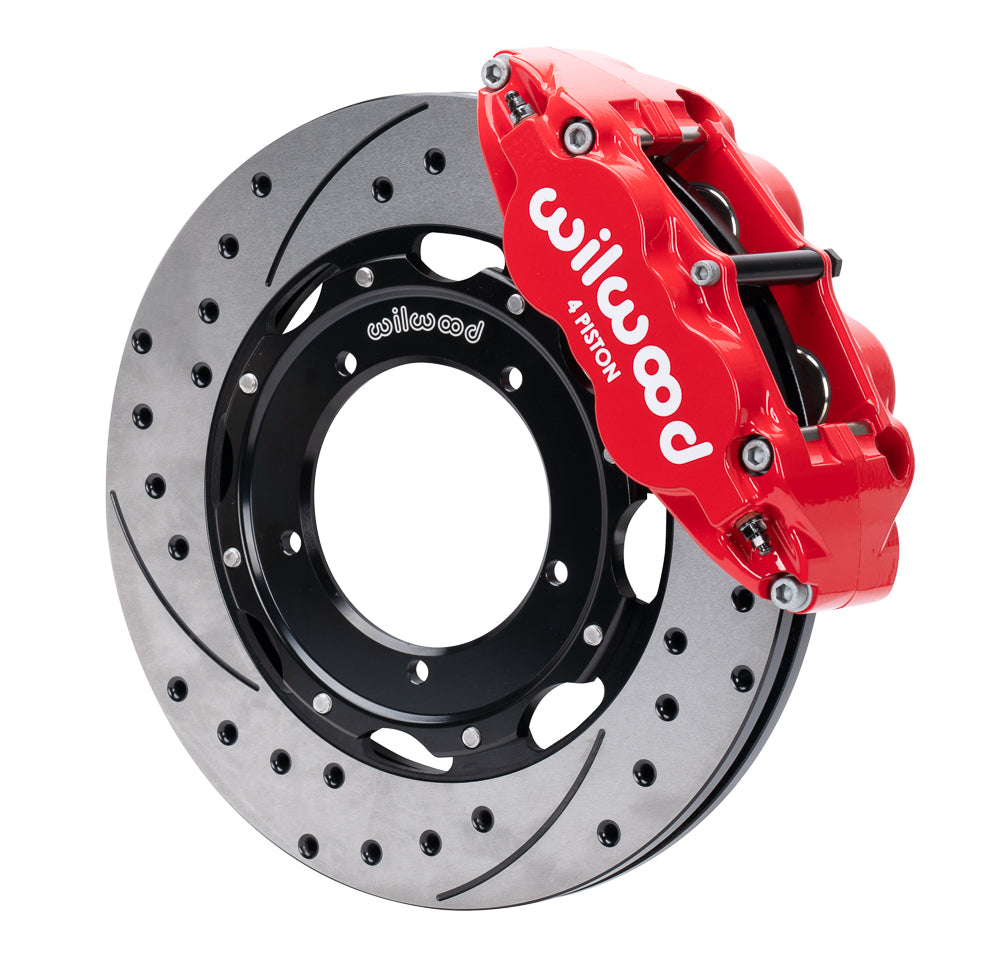

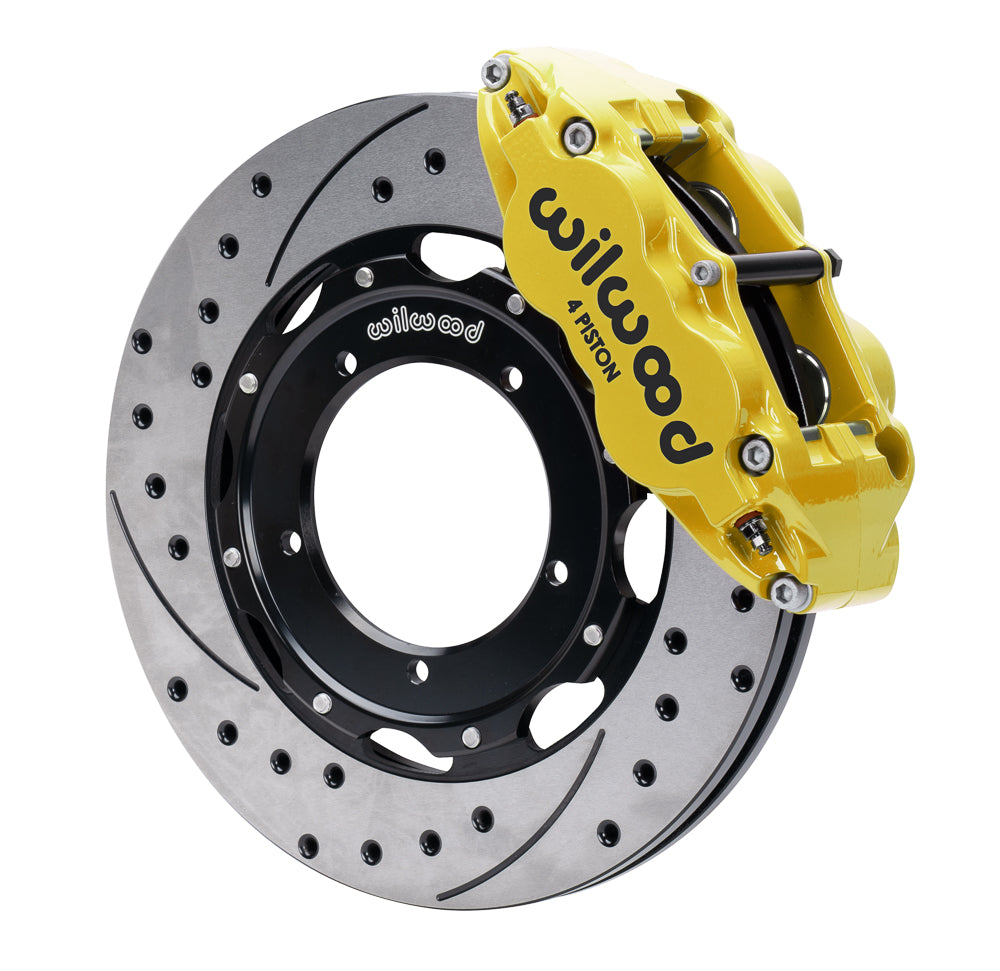

Offered in gloss Le Mans yellow, black or red powder coat, over durable wear-resistant
Type-III hard anodized coating

Rotors: Plain or SRP Drilled & Slotted

Big 310mm (12.19”) x 28mm (1.10”) vented rotors for greater brake torque and more thermal capacity (28mm/1.10” larger than OE)

Precision-machined, low-distortion proprietary iron alloy rotors with 32 cooling vanes, mounted to forged aluminum hats

Rotors offered with GT slotted, or SRP drilled and slotted faces

Brake Pads: BP-10

High-performance street BP-10 brake pads with many other friction compounds available

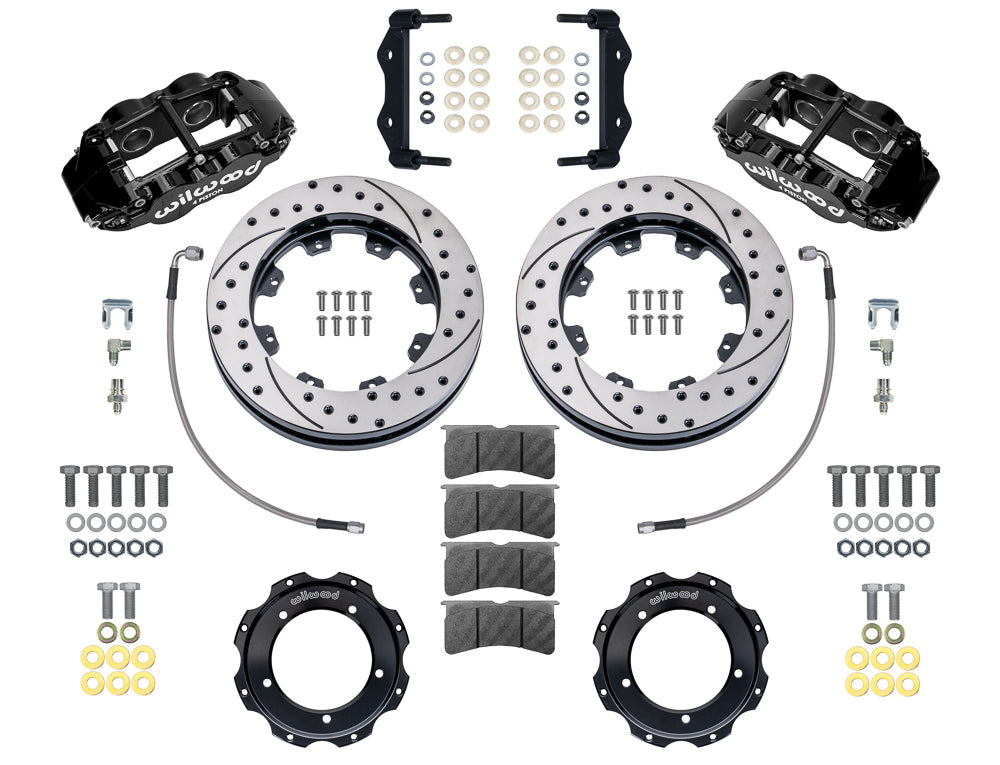

Installation Parts:

Kits include brackets, stainless Flexlines, fittings, and hardware

Part numbers available to fit 3.0” (76,2mm) and 3.5” (88,9mm) spaced front strut mounting tabs

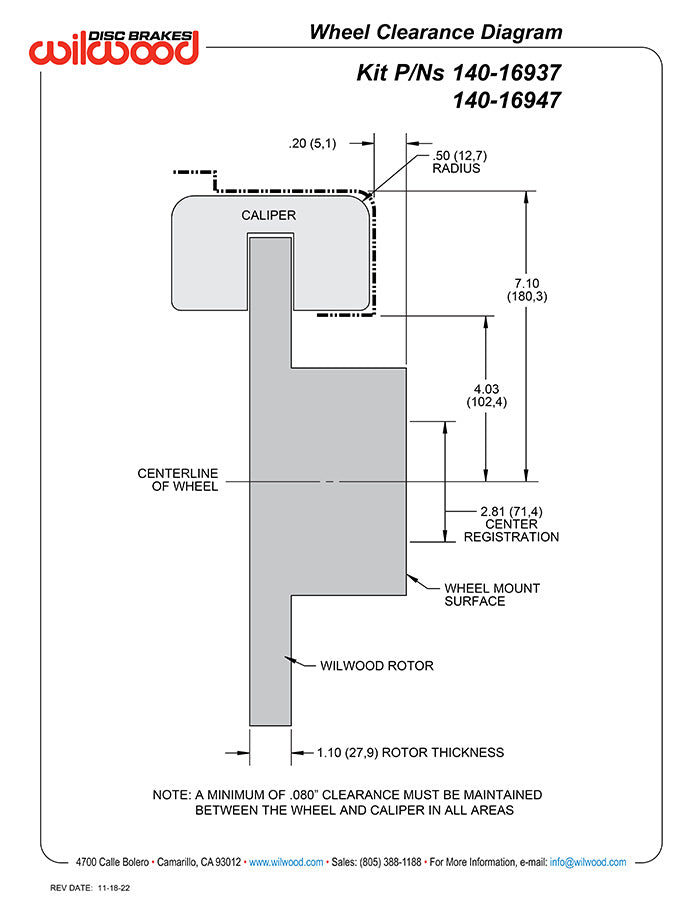

*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
